Southern Blotting – DNA Analysis
Overview
Southern blotting is a fundamental molecular biology technique used to detect specific DNA sequences within complex genomic samples. It combines restriction digestion, gel electrophoresis, membrane transfer, and nucleic acid hybridization using labeled probes for sequence-specific identification. Southern blotting remains a gold standard for validating structural DNA changes, gene copy number variation, and detection of specific alleles.
Historical Context
Southern blotting was first described by Edwin Southern in 1975 as a method to transfer DNA fragments from agarose gels to nylon membranes, followed by hybridization with complementary labeled probes. It provided a robust approach to study gene organization before the advent of high-throughput sequencing.
Core Principles
Southern blotting is based on three central biochemical principles:
1. Restriction Fragment Separation
Genomic DNA is digested with restriction endonucleases, generating a reproducible set of fragments that can be resolved by size using agarose gel electrophoresis.
2. Transfer to a Solid Support
Following electrophoresis, DNA fragments are denatured and transferred to a nitrocellulose or nylon membrane by capillary action or vacuum transfer. The membrane immobilizes DNA for hybridization.
3. Probe Hybridization
Labeled single-stranded DNA or RNA probes (radioactive, fluorescent, or chemiluminescent) are hybridized to complementary target sequences on the membrane. Detection of the probe reflects the presence, size, and abundance of target DNA.

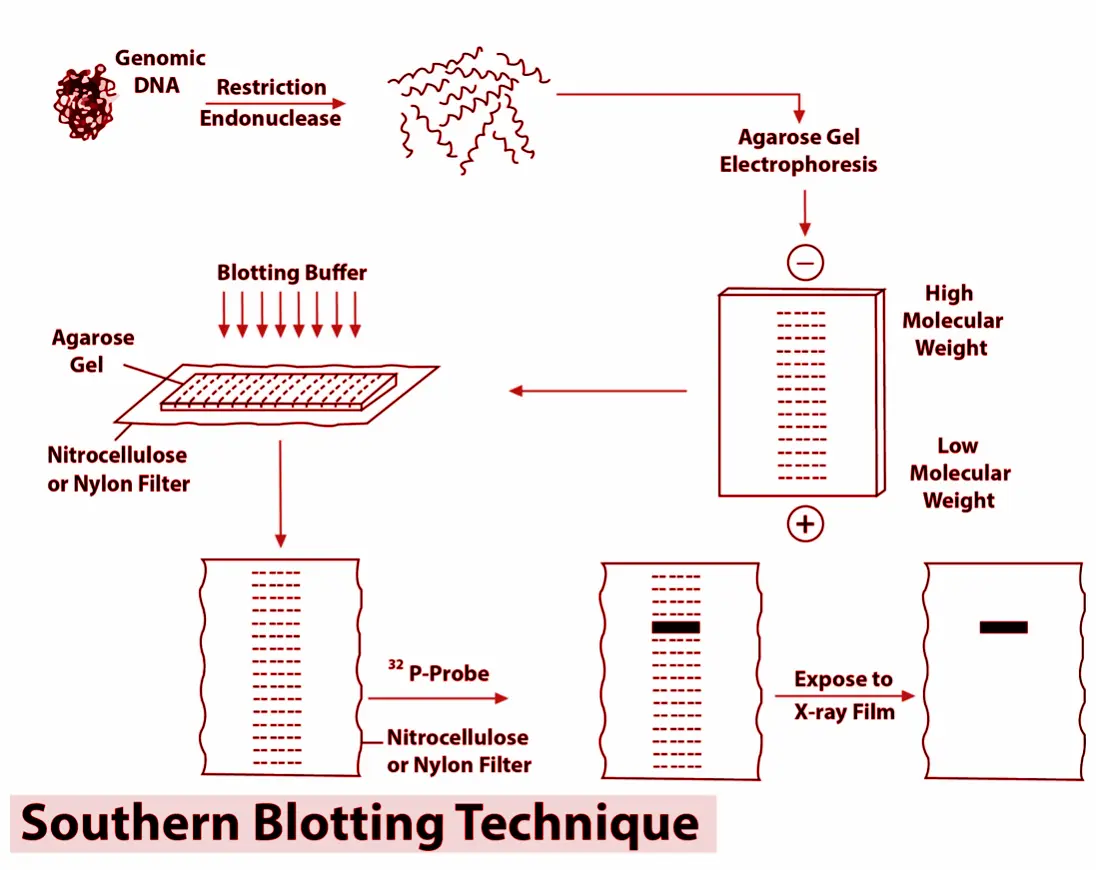

Southern Blot Workflow
The classical Southern blot protocol comprises the following stages:
-
Restriction Enzyme Digestion
DNA is cut at specific sites by restriction endonucleases. -
Agarose Gel Electrophoresis
Digested fragments are separated by size under an electric field. -
Denaturation & Neutralization
DNA in the gel is denatured into single strands and equilibrated to allow probe binding. -
Blotting/Transfer
Single-stranded DNA is transferred from the gel to a membrane. -
Fixation
UV cross-linking or baking immobilizes DNA on the membrane. -

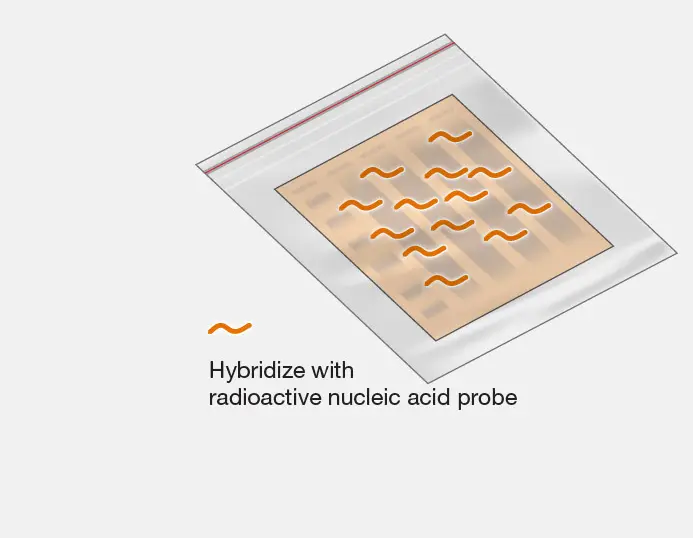

Probe Hybridization
Labeled probes are incubated with membrane to bind complementary sequences. -
Washing & Detection
Unbound probes are removed and specific signal detected via autoradiography or chemiluminescence.
Detailed protocols are available in standard molecular biology manuals.
Applications of Southern Blotting
1 Gene Copy Number Analysis
- Detection of gene amplification in cancer
- Evaluation of transgene copy number in GMO analysis
2 Structural Variant Identification
- Detection of insertions, deletions, and rearrangements
- RFLP (Restriction Fragment Length Polymorphism) analysis
3 Allele & Genotype Confirmation
- Identification of specific allelic variants
- Validation of gene editing outcomes
4 Infectious Disease Diagnostics
- Detection of pathogen genomes in clinical samples
- Validation of PCR results when confirmation by size and sequence context is needed
Conclusion
Southern blotting is a foundational DNA analysis technique that provides reliable detection of specific sequences, structural variants, and gene copy numbers within genomic DNA. While newer technologies have largely supplanted its high-throughput applications, Southern blotting remains indispensable for structural validation and confirmatory analyses in molecular biology, diagnostics, and genetic engineering.
